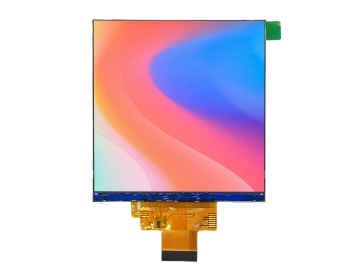

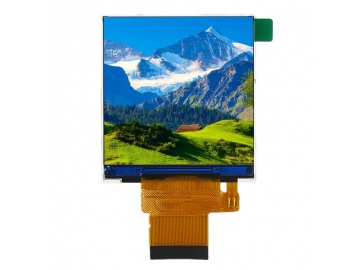

1.3" Small Square IPS TFT Display 240*240 ST7789V for Embedded Wearable Devices

Short Description:

1.3‑inch square IPS TFT LCD module, 240240 resolution, ST7789V driver IC, MCU/SPI/RGB interface, 470nits brightness, full viewing angle. Compact small square display for wearable, smart home and embedded projects.


  • Size: 1.3
  • Resolution: 240*240
  • Interface: MCU/SPI/RGB
  • Luminance (nits): 470
  • Viewing angle: ALL
  • Overall size: 26.16*29.22*1.39
  • Active Area: 23.40*23.40
  • IC: ST7789V
  • Remark: IPS
down load to pdf

Product Details

Product Tags

Our 1.3‑inch square IPS TFT LCD module features 240×240 resolution, powered by ST7789V driver IC. Multiple interfaces including MCU, SPI and RGB are available for flexible integration.

470nits high brightness delivers clear visuals under various light environments, IPS panel offers excellent all‑angle viewing performance.

Overall size: 26.16×29.22×1.39 mm, active area:23.40×23.40 mm. This small square lcd is widely used for wearable devices, smart meters, household gadgets and other embedded display solutions.


Size

Resolution
Interface
Luminince
(Wits)
Vieving andle		 mm
Overall size		 mm
Active Area		IC
Remark
1.3
240*240MCU/SPI/RGB470ALL26.16*29.22*1.3923.40*23.40ST7789VIPS
1.3
240*240MCU/SPI/RGBIIC450ALL37.50*41.10*3.1423.40*23.40ST7789V/FT6336UIPS/CTP
1.4
128*128MCU/SPI4506H32.36*38.00*3.0025.50*26.50ST7735SIPS
1.4
128*128MCU/SPI3806H32.36*38.00*4.2025.50*26.50ST7735SIPS/RTP
1.5
240*240MCU/SPI/RGB400ALL33.32*36.06*2.2527.72*27.72ST7789VIPS
1.5
240*240MCU/SPI/RGBIIC320ALL37.52*41.1*4.4527.72*27.72ST7789V/FT5436IPS/CTP
2.7
320*320MCU/SPI/RGB500ALL53.4*59.9*2.2948.96*48.96ST7796IPS
2.7
320*320MCU/SPI/RGB450ALL63.4*69.9*3.7748.96*48.96ST7796IPS/CTP
3.4
480*480MIPI1000ALL65.72*69.64*2.4560.48*60.48ST7701SIPS
3.4
480*480MIPI950ALL65.72*69.64*4.1360.48*60.48ST7701S/GT911IPS/CTP
3.4
480*480SPI+RGB1000ALL65.72*69.64*2.4560.48*60.48ST7701SIPS
3.4
480*480SPI+RGB950ALL65.72*69.64*4.1360.48*60.48ST7701S/GT911IPS/CTP
3.4
480*480LVDS900ALL65.72*69.64*4.4560.48*60.48ST7701SIPS
3.4
480*480LVDS800ALL65.72*69.64*6.3460.48*60.48ST7701S/GT911IPS/CTP
4
320*320MIPI950 nitsALL77.00*80.00*2.4671.14*69.82ST7796IPS
4
320*320MIPI900 nitsALL77.00*80.00*4.4971.14*69.82ST7796/GT911IPS/CTP
4
320*320MCU/SPI/RGB950 nitsALL77.00*80.00*2.4671.14*69.82ST7796IPS
4
320*320MCU/SPI/RGB900 nitsALL77.00*80.00*4.4971.14*69.82ST7796/GT911IPS/CTP
4★480*4803SPI+16/18/24 RGB1000ALL77.00*80.00*2.3071.86*70.18ST7701SIPS
4★480*4803SPI+16/18/24 RGB800ALL77.00*80.00*3.5071.86*70.18ST7701S.IPS/RTP
4★480*4803SPI+16/18/24RGBIIC950ALL77.00*80.00*4.3571.86*70.18ST7701S/GT911IPS/CTP
4★480*4802lane MIPI1000ALL77.00*80.00*2.3071.86*70.18ST7701SIPS
4★480*4802 Iane MIPIIIC950ALL77.00*80.00*4.3571.86*70.18ST7701S/GT911IPS/CTP
4
480*480LVDS950ALL77.00*80.00*2.3571.86*70.18ST7701SIPS
4
480*480LVDS900ALL77.00*80.00*4.5171.86*70.18ST7701S/GT911IPS/CTP
4★720*7202/3/4 lan e MIPI700ALL77.00*80.00*2.6071.93*71.93ST7703IPS
4★720*7202/3/4 Iane MIPI IIC650ALL84.0*85.99*3.7671.93*71.93ST7703/GT911IPS/CTP
4★720*7203SPI+16/18/24RGB700ALL77.00*80.00*2.6071.93*71.93NV3052CIPS
4★720*7203SPI+16/18/24RGBIIC650ALL84.00*85.99*4.2371.93*71.93NV3052C/GT911IPS/CTP
4★720*720MIPI700ALL77*80*2.671.93*71.93ST7703IPS
4
720*720LVDS700ALL77.00*80.00*2.6071.93*71.93NV3051F-LIPS
19
1280*1024LVDS450ALL396.00*324.00*12.88376.32*301.06TBDTBD
