JST BM03B-AUHKS-GA-TB(LF)(SN)

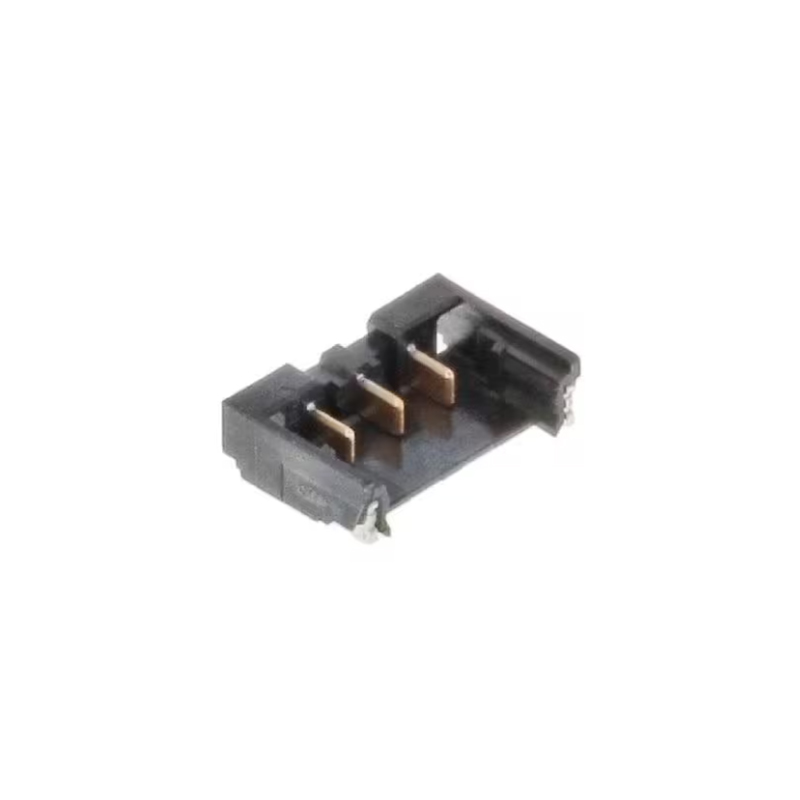

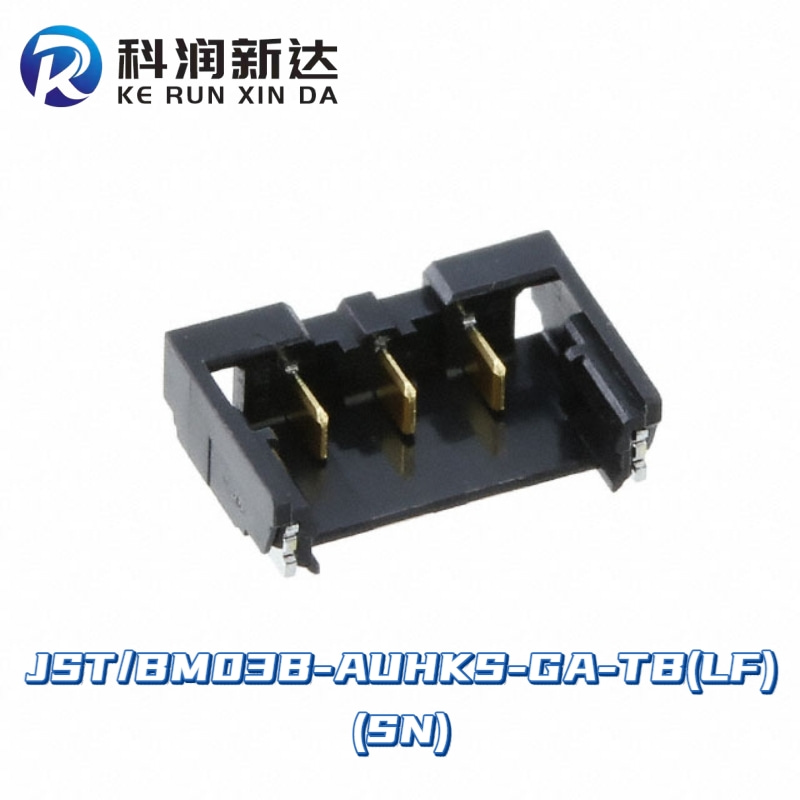

    JST connector model BM03B-AUHKS-GA-TB(LF)(SN) is a rectangular connector header manufactured by JST Japan. This connector has the following features:

    Brand: Japan Crimp Terminal (JST)

    Model No.: BM03B-AUHKS-GA-TB (LF)(SN)

    Contact Material/Plating: Copper Alloy, Contact Finish Gold Plated

    Shroud: With Shade - 3 Wall

    Contact shape: rectangular

    Housing material/plating: thermoplastic

    Number of pins: 3 pins

    Operating Temperature Range: -25°C ~ 85°C

    Insulation Height: 0.073" (1.85mm)

    Material Flammability Rating: UL94 V-0

    Insulation Color: Black

    Mounting Type: Surface Mount, Right Angle

    Fastening Type: Pin Lock

    Contact Type: Male Blade

    Termination Type: Solder

    Rated Voltage: 30V

    In addition, this connector is rated at 5A (AWG#22) for power circuits and 1A for signal circuits . Its compact design and low profile, with a height of only 1.85mm and a width of 5.2mm, makes it suitable for board-to-wire connections.BM03B-AUHKS-GA-TB(LF)(SN) connectors are suitable for applications that require miniaturization and high reliability connections.
